Daytime weather satellite images recorded at Ferndown, Dorset, UK.

Latitude: 50.793, Longitude: -1.905

Software: WXtoImg v2.11.2 beta, running under Windows 7 on a dedicated PC in the loft

Receiver: R2ZX with 'diversity' mode enabled to utilise two aerials & Uputronics 137.5Mhz Filter/Preamp fitted to QFH aerial

Aerials: DIY Quadrifilar Helix (QFH) + DIY Double Cross dipoles (DCA), both mounted in loft (click on image opposite)

Latest image: NOAA 18 on 12 Jun 2021 23:05. Oldest image: Composite on 11 Jun 2021 11:46

Next satellite due: NOAA 15 southbound 53° E at 13 Jun 2021 08:39 (when web page was last updated)


Click on any image below for a full sized image. Anaglyph (3D) images must be viewed with red/blue 3D glasses.
Times are shown in GMT Daylight Time.
About the Enhancements
Saved UK Storm Images
(c) 2010-2021 Neville Roberts BSc CEng CPhys FIET MInstP
Home

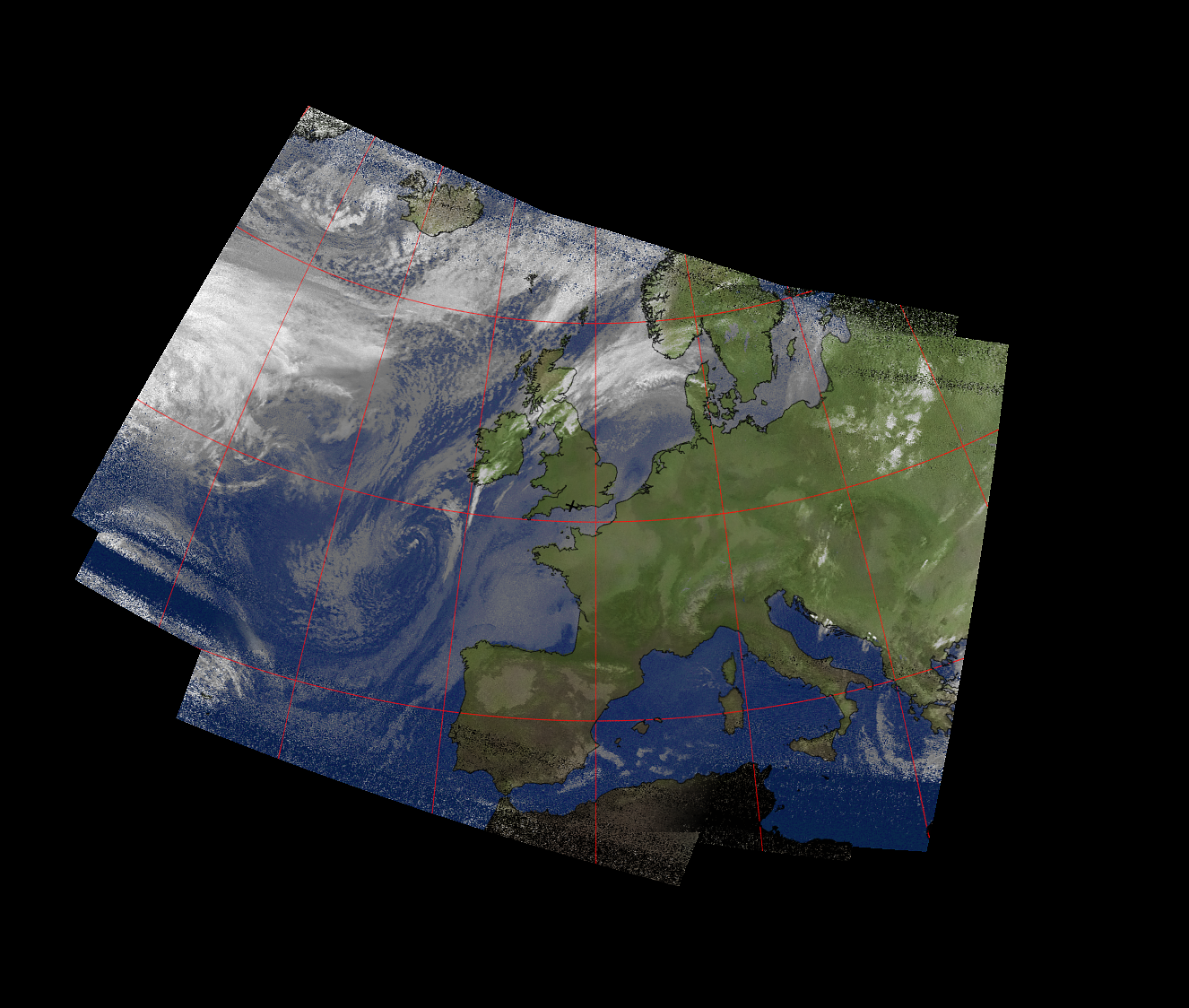

Composite MCIR
Composite MCIR
12 Jun 2021 23:05

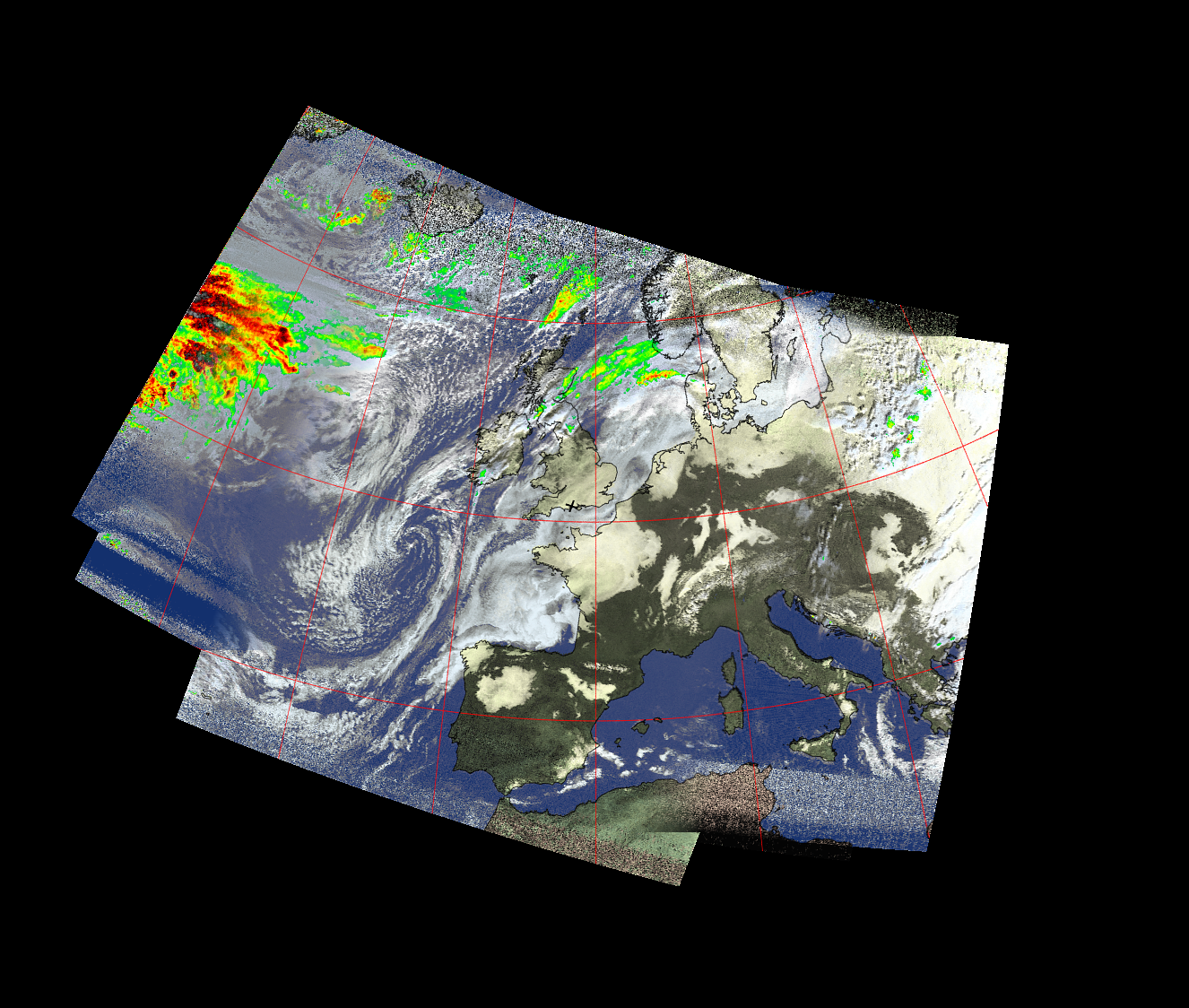

 Composite HVCT-precip
Composite HVCT-precip
12 Jun 2021 23:05

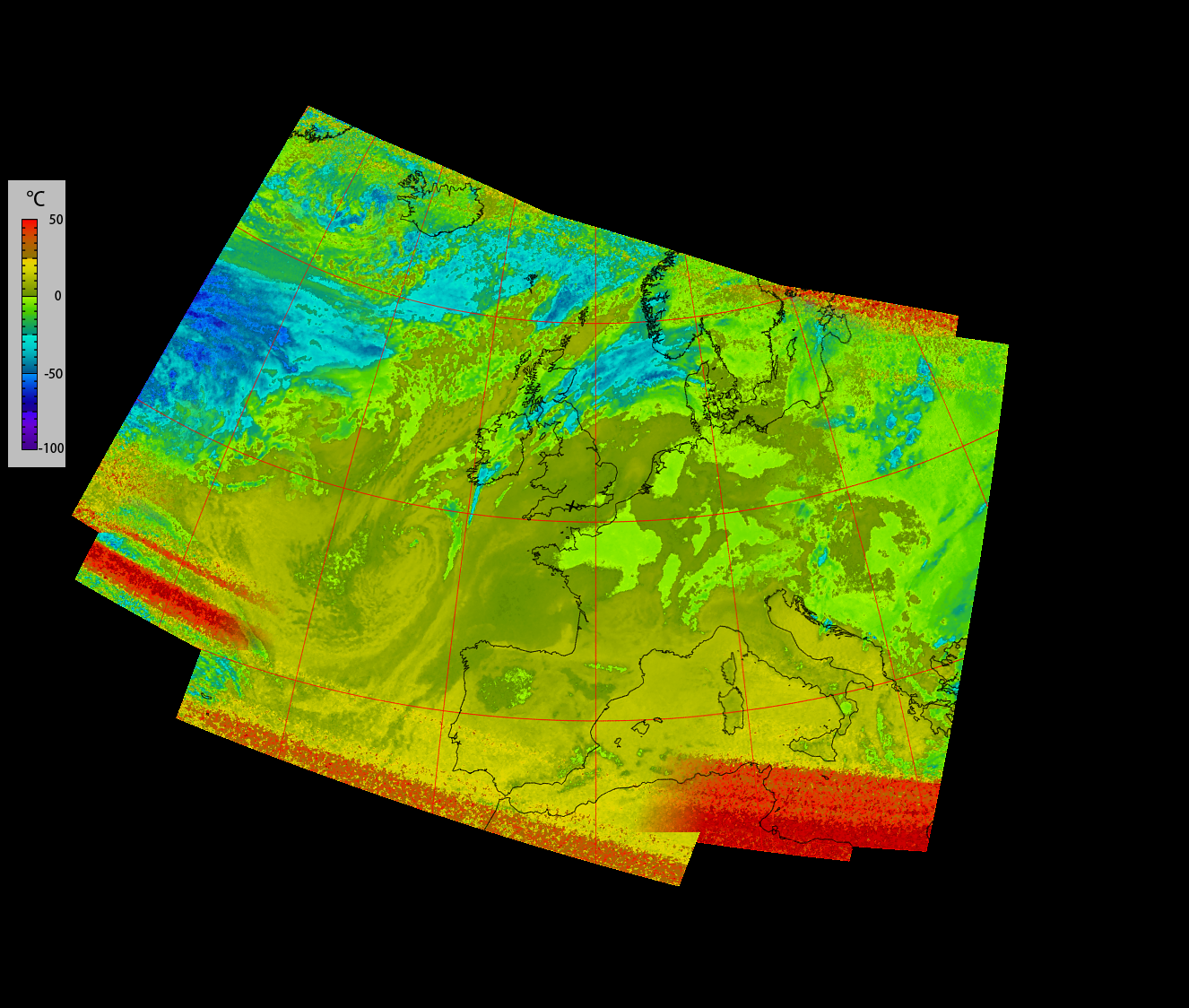

Composite therm
Composite therm
12 Jun 2021 23:05

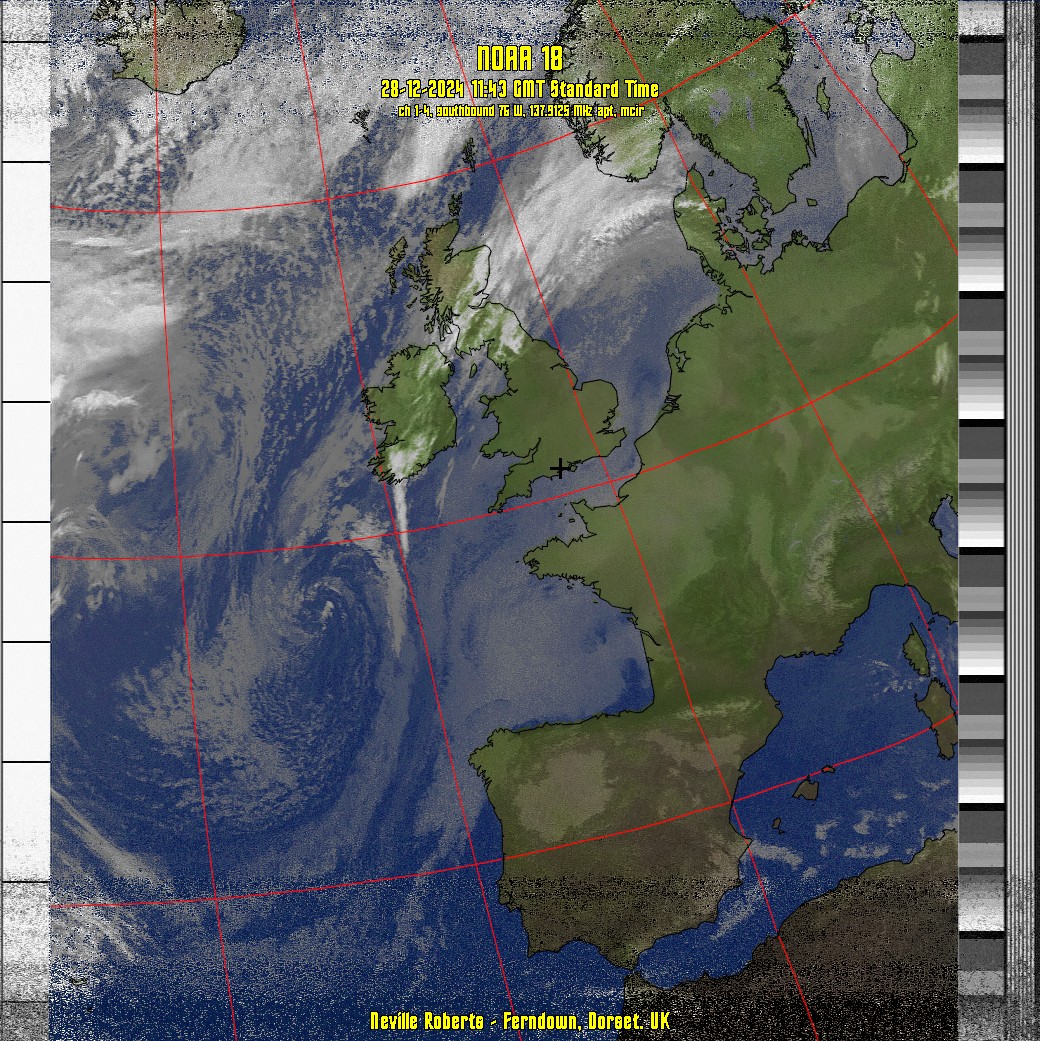

 NOAA 18 MCIR
NOAA 18 MCIR
12 Jun 2021 23:05

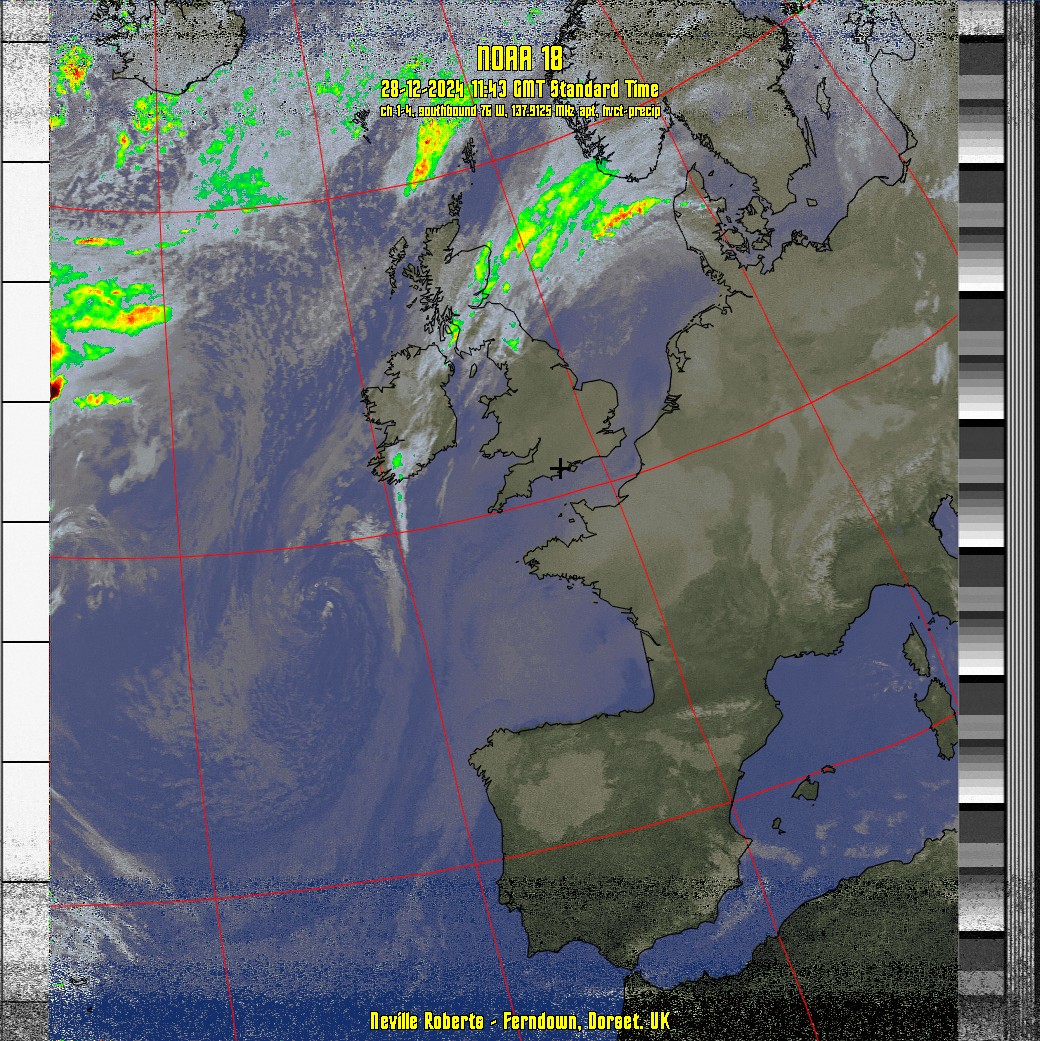

NOAA 18 HVCT-precip
NOAA 18 HVCT-precip
12 Jun 2021 23:05

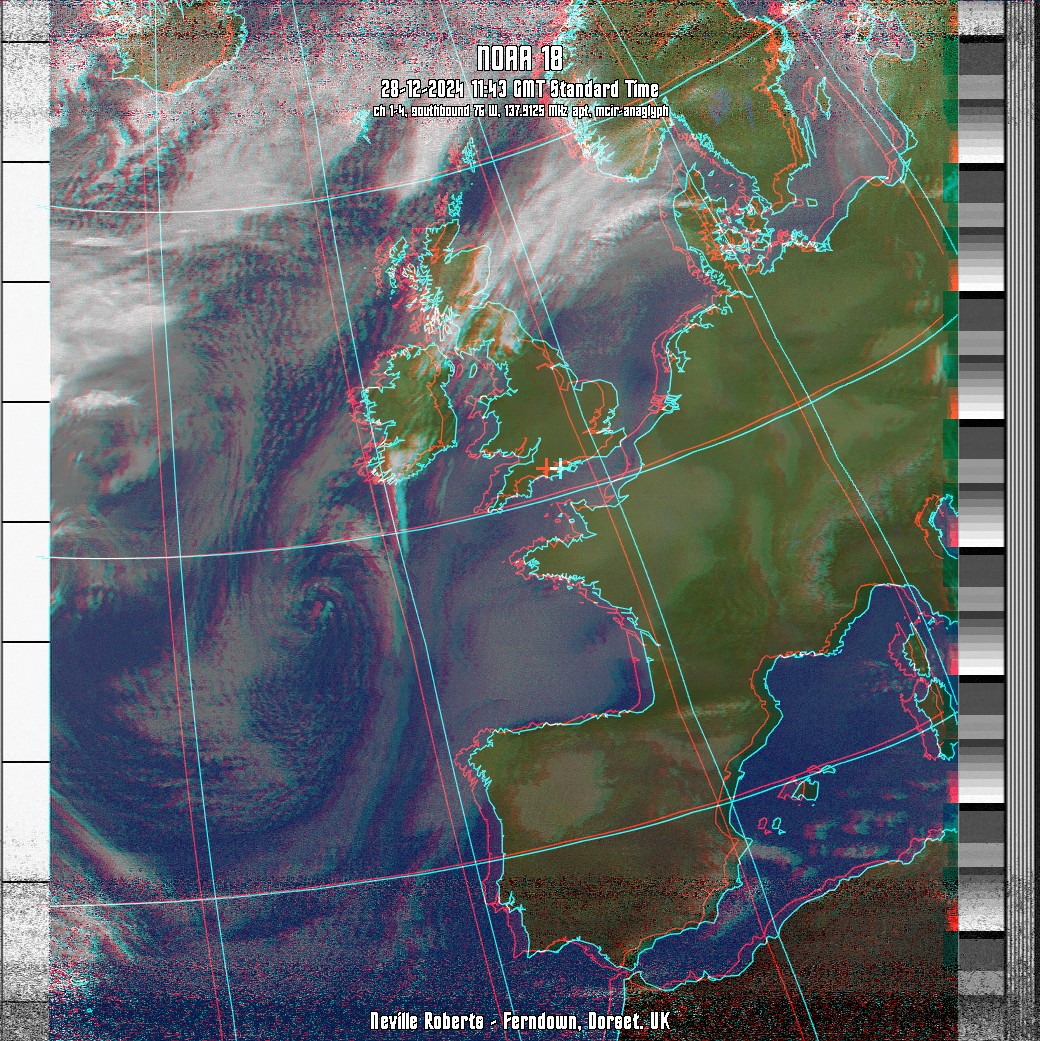

 NOAA 18 MCIR-anaglyph
NOAA 18 MCIR-anaglyph
12 Jun 2021 23:05

Next Scheduled Satellite Passes over Ferndown, Dorset, UK.

Satellite
Name		 Start of Pass End of Processing Direction Maximum Elevation
Degrees (East or West)		 Frequency
MHz
UTC Local Time* UTC Local Time*
NOAA 15 13 Jun 07:39 13 Jun 08:39 13 Jun 08:03 13 Jun 09:03 137.62
NOAA 19 13 Jun 07:44 13 Jun 08:44 13 Jun 08:09 13 Jun 09:09 137.10
NOAA 18 13 Jun 10:20 13 Jun 11:20 13 Jun 10:39 13 Jun 11:39 137.9125
NOAA 19 13 Jun 17:35 13 Jun 18:35 13 Jun 17:53 13 Jun 18:53 137.10
NOAA 15 13 Jun 19:03 13 Jun 20:03 13 Jun 19:22 13 Jun 20:22 137.62
NOAA 18 13 Jun 20:11 13 Jun 21:11 13 Jun 20:28 13 Jun 21:28 137.9125
NOAA 18 13 Jun 21:51 13 Jun 22:51 13 Jun 22:09 13 Jun 23:09 137.9125
NOAA 15 14 Jun 07:14 14 Jun 08:14 14 Jun 07:31 14 Jun 08:31 137.62

* local time is GMT Daylight Time.

About the Enhancements

HVCT-precip

HVCT false colour creates a false coloured image using the HVC colour model by combining a sensor 1 or 2 (visible/near infrared)
image with a sensor 4 image (thermal infrared). High cold cloud tops are coloured to give an approximate indication of the probability
and intensity of precipitation.

MCIR

Map Coloured IR uses sensor 4 (thermal infrared) to create a false coloured image to colour the sea blue and land green.
High clouds are white and lower clouds are grey.

MCIR-anaglyph

Map Coloured IR 3D image is the same as MCIR but in 3D showing the clouds at different heights above the surface.

MSA

Multispectral Analysis combines a sensor 1 or 2 (visible/near infrared) image with a sensor 4 (thermal infrared) image on daytime
passes and determins which regions are most likely to be cloud, land or sea based on an analysis of the two images.
It produces a vivid, false-coloured image as a result.

Pristine

Pristine images are those received by my system from the satellite without any enhancements, except some normalisation to produce
images which best represent the original data. The earth appears "upside down" on Northbound passes. The two images are the two
channels sent by the satellite with channel A (left) switching between sensor 1 (visible) or 2 (near-IR) during the day and
sensor 3 (mid-IR) at night together with channel B (right) showing sensor 4 (thermal-IR) at all times during normal operation.

Thermal

Thermal creates a false coloured image using the temperatures from a sensor 4 (thermal infrared) image. Covers the full range
of temperatures from very cold cloud tops to hot deserts.
